Description
Overview
10 Ft x 10 Ft

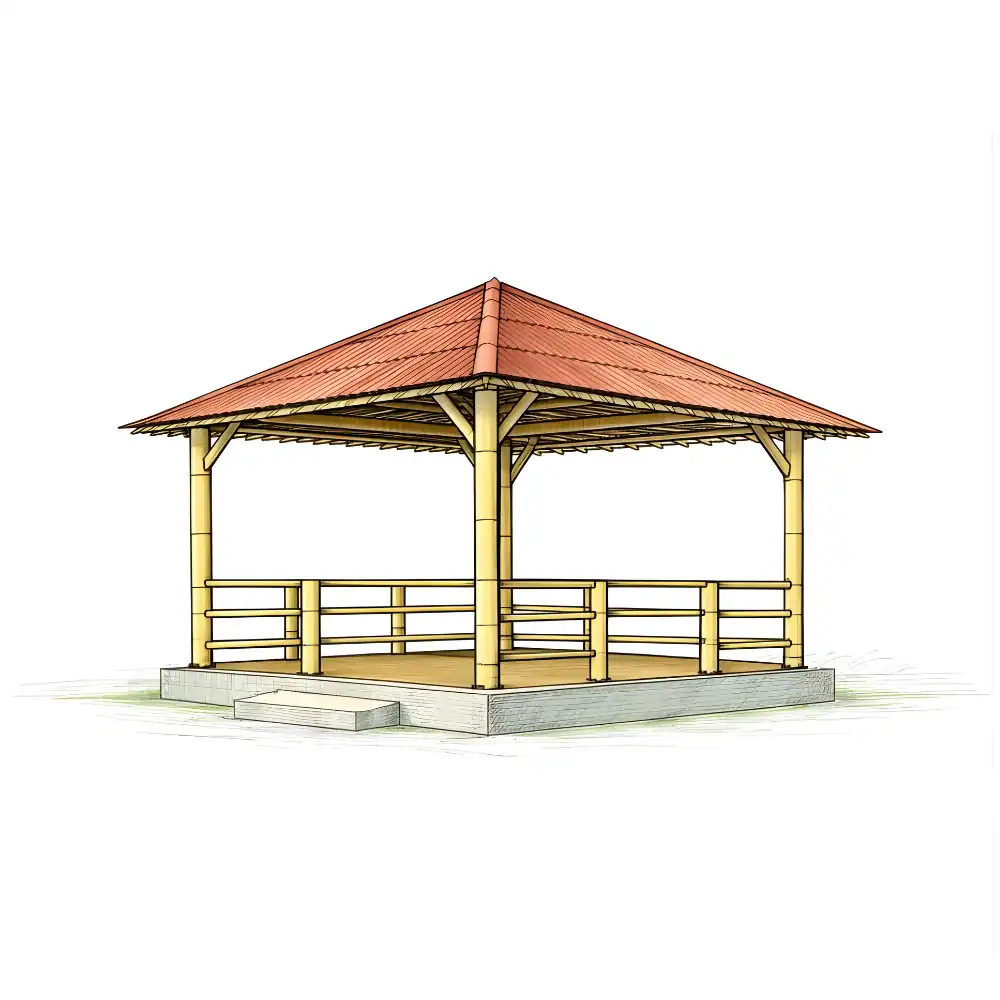

Engineered bamboo structure constructed using treated structural bamboo poles and technically designed joinery systems. Built for architectural applications requiring strength, material integrity, and visible natural bamboo aesthetics.
Structural System
• Treated structural-grade bamboo poles
• Primary load-bearing bamboo members
• Secondary framing and bracing elements
• Designed as per approved layout and span requirements
Material Specification
• Mature, seasoned bamboo poles
• Anti-termite and anti-borer treated
• Moisture-controlled curing process
• Natural matte or sealed finish (as specified)
Joinery & Engineering
• Technically detailed joinery
• Mechanical fastening with concealed / exposed hardware where required
• Reinforced node connections
• Cross-bracing for structural stability
• Engineered load distribution across spans
Construction Approach
• Site-specific structural planning
• Modular prefabrication (where applicable)
• On-site assembly by trained technicians
• Alignment and level calibration during installation
Roofing Options
• Bamboo purlin framework
• Corrugated roofing sheets / thatch / tile (as specified)
• Integrated drainage slope planning
Applications
Resorts, cafés, farmhouses, eco-retreats, reception areas, outdoor pavilions, shaded walkways, semi-covered structures.
Usage Note
Suitable for covered outdoor or semi-exposed environments. Direct ground contact and prolonged water stagnation to be avoided unless specially treated.
Finish & Variation
Natural bamboo tone, diameter variation, and node spacing are inherent material characteristics and not defects.
Maintenance
• Periodic surface inspection
• Reapplication of protective coating as required
• Avoid prolonged moisture exposure
Lead Time
45–60 days from confirmed design and order.
Payment Terms
60% advance at order confirmation.
40% balance before dispatch / site execution.
Note
Final cost and structural detailing subject to site conditions, span requirements, wind load considerations, foundation design, and roofing specification.
